Eternal Hydraulic Parker Type VA35/VG35 Directional Control Valve

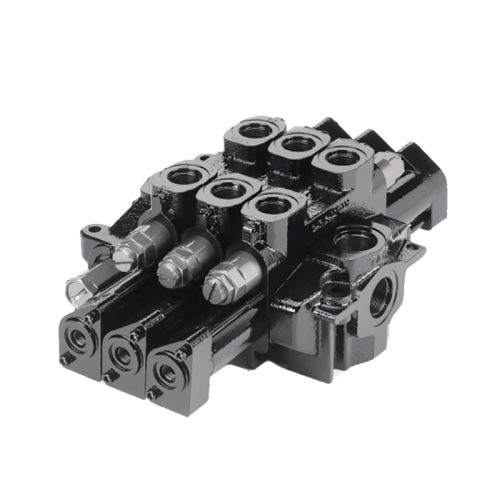

Parker’s VA35/VG35 is a sectional, open center, CF (constant flow), directional control valve for mobile machines. It is typically applied between 20 and 45 GPM pump flow. Work sections are offered in many functional types and inlet/outlet sections. Working sections are available in either series or parallel and can be assembled in any combination or sequence without affecting the performance of other work sections on the valve bank.
Eternal Hydraulic supply Monoblock & Sectional directional control valve. P40 P80 P120 series / ZT(ZD) series /SD series / DCV series / ZS series / MB series / RD500 series… According to customer needs, different control methods can be used, including Manual Control, Electro-hydraulic Control, Pneumatic Control, SolenoidControl, Cable Control (with remote), Microswitch Control, Pilot control…
Model Code
Technical Data of Parker VA35/VG35 Directional Control Valve
Maximum Flow Rate:：65 Gal/min, 246 L/min
Maximum Operating Pressure: Pressures up to 3500 psi, Pressures up to 240 lpm bar
→Parker VA35/VG35 Directional Control Valve
Application
Markets:
Construction Equipment
Material Handling Equipment
Mining
Other Mobile
Other Natural Resources
Refuse
Vocational & Municipal Equipment
Applications:Suitable for Various Mobile Applications
Features of Parker VA35/VG35 Directional Control Valve
- Dirt tolerant, quick response
- Differential area main relief valves
- Outstanding pressure drop and balanceThe standard maximum work port size is SAE-12
- Inlets are typically ported SAE-16 and the outlets SAE-20
- Provides excellent feathering control and low spool force
- Rated at 2500 PSI inlet and 45 GPM maximum pump flow
- Minimizes heat generation especially when retracting cylinders
- Standard actuation methods are spring return, detent, pneumatic, and hydraulic remote
