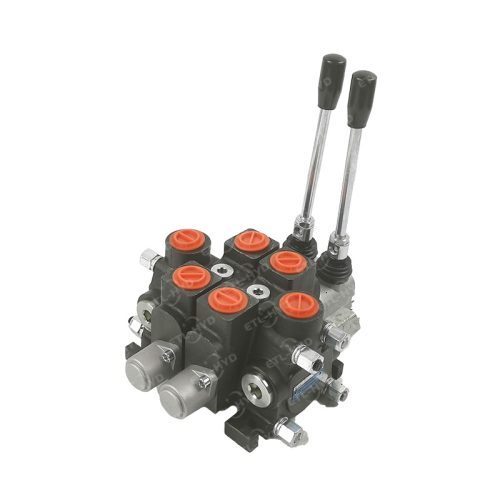

Eternal Hydraulic PC100 Sectional Directional Control Valve

РC100 is a sectional directional control valve with manual control. The distributors are manufactured as either parallel or serial working flow distribution versions. They can be integrated in packages of up to 8 sections.

Directional control valves perform only three functions:

  • Stop fluid flow
  • Allow fluid flow
  • Change direction of fluid flow

There is a part called «spool» inside control valve which can be operated mechanically or electrically. The movement of the spool lets oil flow or blocks the oil flow in other words it controls the movement of fluid. Hidros provide sectional directional control valves with different capacities and spool control options such as hydraulic, pneumatic or with cables/joysticks.

Eternal Hydraulic supply Monoblock & Sectional directional control valve. P40 P80 P120 series / ZT(ZD) series /SD series / DCV series / ZS series / MB series / Walvoil series / RD500 series… According to customer needs, different control methods can be used, including Manual Control, Electro-hydraulic Control, Pneumatic Control, SolenoidControl, Cable Control (with remote), Microswitch Control, Pilot control…

Code Number of levers Nominal flow rate
L/min		 Max. pressure
P port
bar
PC100N1-A1/T1-GKZ1 1 100 250
2PC100N1-2*PA1/T1-GKZ1 2 100 250
3PC100N1-3*PA1/T1-GKZ1 3 100 250
4PC100N1-4*PA1/T1-GKZ1 4 100 250
5PC100N1-5*PA1/T1-GKZ1 5 100 250
6PC100N1-6*PA1/T1-GKZ1 6 100 250
7PC100N1-7*PA1/T1-GKZ1 7 100 250
8PC100N1-8*PA1/T1-GKZ1 8 100 250
* Standard spool is open center “A” spool with spring return. Working port threads are G 3/4”.
G 1/2” thread is also available. For different specifications please contact us.





Model Code

→PC100 Sectional Directional Valve PDF

Features of PC100 Valve

Nominal flow rate: 80 liter/min (Max. flow 100 liter/min)
Max. Pressure: P: 210 bar, T: 50 bar, A-B: 250 bar
Spool type: Standard open center spool (A spool), different spool options
Number of spools: From 1 to 8
Leakage: 18 cm3/min at 120 bar (From A,B to T)
Fluid temperature range: -10 oC … +80 oC
Working fluid: Mineral based hydraulic oil
Viscosity: 10-100 cSt (46 cSt mineral based hydraulic oil is recommended, may vary in different climates)
Filtration: 10 to NAS 1638



Application of PC100 Sectional Directional Control Valve

The hydraulic directional control valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting & handing equipment, construction machinery, etc.
