Eternal Hydraulic Monoblock & Sectional Directional Control Valve
-Russian MPC70.4 Hydraulic Distributor (Секционные гидрораспределители MРС70.4)
МРС70.4/1.РМ.111, МРС70.4/1.РМ.113, 1 МРС70.4/2.РМ.111, 1 МРС70.4/2.РМ.113, МРС70.4/3, МРС70.4/4.РМ.111, МРС70.4/4.РМ.113
Russian Type MPС70 hydraulic distributor (directional control valves) with 1-19 spools are designed for distribution and control of working fluid in hydraulic systems of machines with pumps with capacity to 90 l/min.

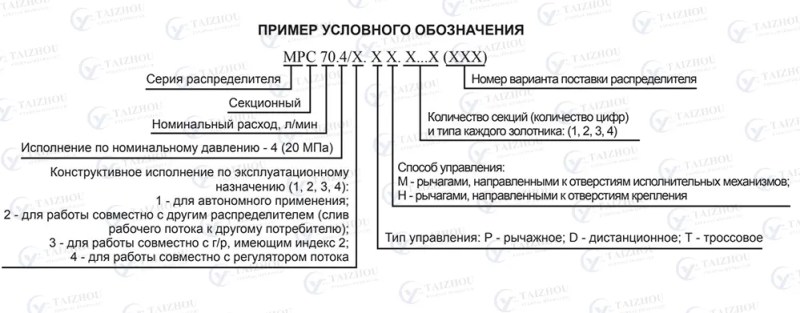

Model Code of MPC70.4 Russian Hydraulic Distributor
Technical Data
Distributor type Sectional, open center
Nominal passage: 12 mm
Consumption of working fluid, l/min: Rated 70 Maximum 90
Relief valve type: Indirect action
Working pressure, MPa: Rated 20 Max 25
Number of spools: Dependent on the number of sections from 1 to 10
Spool positions Raise, Neutral, Lower, Float
Spool control Mechanical (lever)
Weight, kg 4.1+N x 3.3
→MP Russian Type Hydraulic Distributor PDF
Related Product
Russian MP80 Hydraulic Distributor (Моноблочные гидрораспределители Р80)
Nsh Gear Pump (НАСОС ШЕСТЕРЕННЫЙ НШ)
Related Product
→P Series Hydraulic Directional Control Valve
→ZT(ZD) Series Directional Control Valve
→SD Series Directional Control Valve
→DCV Series Directional Control Valve
→MB Series Directional Control Valve
→Other Series Directional Control Valve
Application
The hydraulic directional control valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting & handing equipment, construction machinery, etc.
MPC designed to change the direction of the flow of the working fluid and protect against overloads in the hydraulic systems of tractors, agricultural, construction, municipal, road machines and other mobile equipment.
Предназначен для изменения направления потока рабочей жидкости и защиты от перегрузок в гидравлических системах тракторов, сельскохозяйственных, строительных, коммунальных, дорожных машин и другой мобильной техники.
Feature
- High quality valve rod. Heat treatment with HRC45 Interchangeable spools Throttling groove on the spools.
- CNC Honing machine. High accuracy CNC honing machine Guarantee verticality & circular axis.
- Anti-rusty valve body. 72 hours salt spraying testing Anti-rusty valve body for 3 years.
