Eternal Hydraulic Monoblock & Sectional Directional Control Valve
Eternal Hydraulic supply Monoblock & Sectional directional control valve. P40 P80 P120 series / ZT(ZD) series /SD series / DCV series / ZS series / MB series / RD500 series… According to customer needs, different control methods can be used, including Manual Control, Electro-hydraulic Control, Pneumatic Control, SolenoidControl, Cable Control (with remote), Microswitch Control, Pilot control…
Model Code
→SD Series Directional Control Valve PDF
→P Series Directional Valve
→ZT(ZD) Series Directional Valve
→DCV Series Directional Valve
→MB Series Directional Valve
→MP Series Directional Valve
→Other Series Directional Valve
Application
The hydraulic directional control valve is widely used in hydraulic systems of agriculture machinery, forklifts, sanitation trucks, transport machinery, lifting & handing equipment, construction machinery, etc.

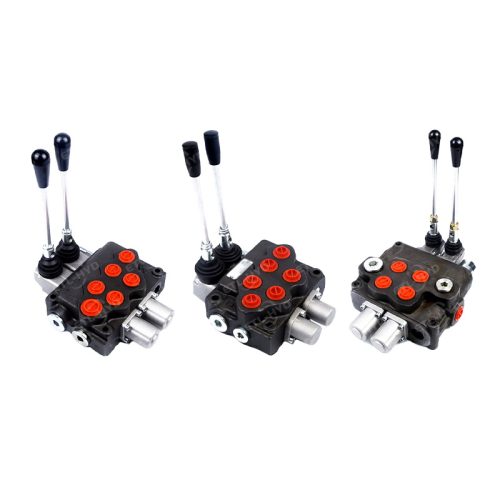

Feature of SD Series Valve
SD4: Simple, compact designed, this valve is only one section for open center and closed center hydraulic systems.
◆ Fitted with a main pressure relief valve.
◆ Diameter 16 mm – 0.63 in interchangeable spools.
◆ Available manual and remote with flexible cables spool control kits.
SD5: Simple, compact and heavy duty designed monoblock valves from 1 to 6 sections for open and closed center hydraulic systems.
◆Fitted with a main pressure relief valve and a load check valve.
◆Available with parallel, series or tandem circuit.
◆Optional power beyond port (only for parallel or tandem circuit).
◆Diameter 16 mm – 0.63 in interchangeable spools.
◆A wide variety of service port valve options.
◆Actuation is manual, pneumatic, electro-pneumatic, hydraulic, electro-hydraulic, with solenoid and remote with flexible cables spool control kits.
SD11: Simple, compact and heavy duty designed monoblock valves from 1 to 6 sections for open and closed center hydraulic systems.
◆ Fitted with a main pressure relief valve and a load check valve.
◆ Available with parallel or series circuit.
◆ Optional power beyond port (only for parallel circuit).
◆ Diameter 20 mm – 0.79 in interchangeable spools.
◆ A wide variety of service ports and circuit valves.
◆ Available manual, pneumatic, hydraulic, electro-hydraulic and remote with flexible cables spool control kits.
SD14: Simple, compact designed, this valves is only one section for open centre and closed centre hydraulic
systems.
◆ Fitted with a main pressure relief valve.
◆ Diameter 20 mm — 0.79 in interchangeable spools.
◆ Available manual, pneumatic, electro–hydraulic and remote with flexible cable spool control kits.
SD18: Simple, compact and heavy duty designed monoblock from 1 to 4 sections for open and closed center hydraulic systems.
◆ Fitted with a direct or pilot operated main pressure relief valve.
◆ Parallel circuit.
◆ Optional carry-over port.
◆ Diameter 25 mm – 0.98 in interchangeable spools.
◆ A wide variety of service port valves.
◆ Available manual, pneumatic, electro-pneumatic, hydraulic and electro-hydraulic spool control kits.
SD8: Simple, compact and heavy duty designed sectional valve from 1-14 sections for open and closed centre hydraulic systems.
◆ Flow rate: 90l/min, with max pressure 315bar.
◆ Joining port: L (screw connection)
◆ Spool function options: O,P, Y, A and etc.
◆ Nominal diameter: G1/2; G3/4, 7/8-14UNF ,SAE10, 3/4-16UNF, SAE8, M18X1.5
◆ Spring side control options: spring control and detent control
◆ Lever side control options: manual, pneumatic control, electric and pneumatic control, hydraulic and electric control, hydraulic control and remote control.
SDS180: Simple, compact and heavy duty designed sectional valve from 1 to 12 sections for open and closed centre hydraulic systems.
◆ Fitted with a main pressure relief valve and a load check valve on every working section
◆ Available with parallel, tandem or series circuit.
◆ Optional carry-over port.
◆ A wide range of antishock+anticavitation port valves.
◆ Intermediate sections for several types of circuit.
◆ Available manual, pneumatic, electrohydraulic, proportional hydraulic, spool control kits.
◆ Diameter 20 mm (0.79 in) interchangeable spools.
