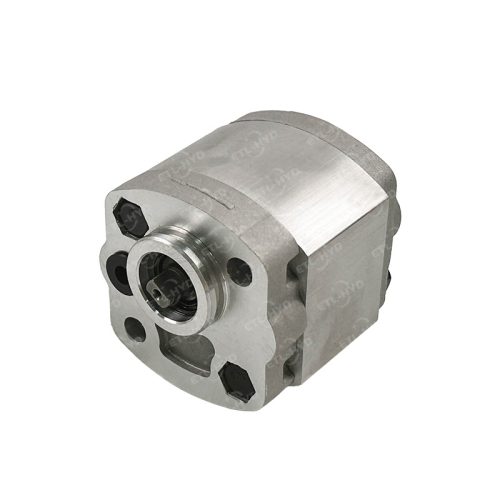

Eternal Hydraulic EG1 Hydraulic Gear Pump
EG Series Hydraulic Gear Pump are suitable for the most different application in both industrial and mobile sectors. Generally these gear pumps usually consist of a gear pair supported by two aluminum bushes, a body, a securing flange and a cover. Shaft of the driving gear projecting beyond the flange mounts a twin-lip seal ring (the inner lip being a seal and the outer being a dust seal). An elastic securing ring secures the ring in place.
Eternal Hydraulics supply a wide range of gear pumps for a variety of vehicles and industrial applications, such as hydraulic systems for agricultural machinery(tractors and so on), construction machinery, municipal cleaning vehicles, etc. Our products can replace brands such as marzocchi, Rexroth… If you are not sure how to choose the model you need, please contact our professional staff.
Model Code
EG1 series
Technical Data
EG1 series
| Size | Displacement (in³/rev) | Max speed rpm | Max flow (gpm) | Min speed rpm | Min flow (gpm) | Min Volum. Effie.* % |
|---|---|---|---|---|---|---|
| EG1-09 | 0.95 (0.058) | 6000 | 5.7 (1.50) | 600 | 0.5 (0.14) | 90 |
| EG1-13 | 1.26 (0.077) | 6000 | 7.5 (1.99) | 600 | 0.7 (0.18) | 92 |
| EG1-16 | 1.64 (0.100) | 6000 | 9.8 (2.60) | 400 | 0.6 (0.16) | 95 |
| EG1-21 | 2.05 (0.125) | 5500 | 11.3 (2.98) | 400 | 0.8 (0.21) | 95 |
| EG1-25 | 2.56 (0.156) | 5500 | 14.1 (3.72) | 400 | 1 (0.26) | 95 |
| EG1-31 | 3.15 (0.192) | 4500 | 14.2 (3.75) | 400 | 1.2 (0.32) | 95 |
| EG1-38 | 3.80 (0.232) | 4000 | 15.2 (4.01) | 400 | 1.4 (0.38) | 95 |
| EG1-43 | 4.28 (0.261) | 3500 | 15 (3.96) | 400 | 1.6 (0.43) | 95 |
| EG1-50 | 4.97 (0.303) | 3000 | 14.9 (3.94) | 400 | 1.9 (0.50) | 95 |
| EG 1-62 | 6.21 (0.379) | 2700 | 16.8 (4.43) | 400 | 2.4 (0.62) | 95 |
| EG 1-78 | 7.80 (0.476) | 2500 | 19.5 (5.15) | 400 | 3.0 (0.78) | 95 |
| EG 1-99 | 9.85 (0.601) | 2000 | 19.7 (5.20) | 400 | 3.7 (0.99) | 95 |
