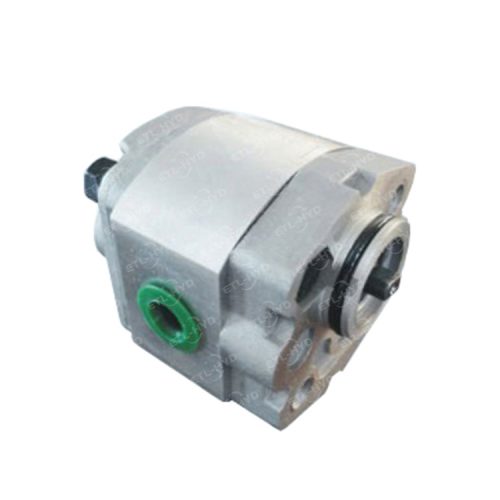

Eternal Hydraulic AZPS Gear Pump

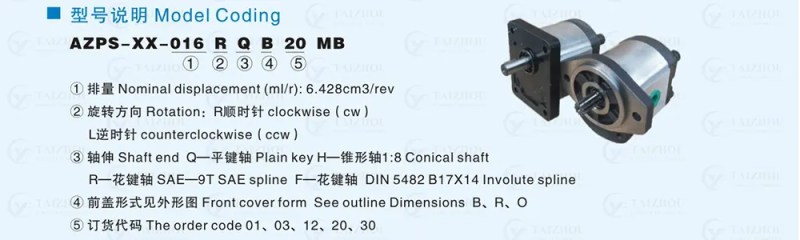

Modle Code
Technical Data
| 订货代码01 The order code 01 | 排量 displacement | 进油口 oil inlet | 出油口 Oil outlet | ||||
|---|---|---|---|---|---|---|---|
| 6—-16 | G3/4 | G1/2 | |||||
| 19—-28 | G1 | G3/4 | |||||
| 订货代码20 The order code 20 | 排量 displacement | 进油口 oil inlet | 出油 口 Oil outlet | ||||
| C | D | E | C | D | E | ||
| 6 | 15 | 40 | M6深度13 | 15 | 35 | M6深度13 | |
| 8—-16 | 20 | ||||||
| 19—-28 | 26 | 55 | M8深度13 | ||||
| 订货代码30 The order code 30 | 排量 displacement | 进油 口 oil inlet | 出油口 Oil outlet | ||||
| C | D | E | C | D | E | ||
| 6—-8 | 13.5 | 30.5 | M6深度13 | 13.5 | 30.5 | M6深度13 | |
| 11—-28 | 20 | 39.7 | M8深度13 | ||||
| 订货代码03 The order code 03 | 排量 displacement | 进油 口 oil inlet | 出油口 Oil outlet | ||||
| 6 | M18X1.5 | M18X1.5 | |||||
| 8—-16 | M27X1.5 | M22X1.5 | |||||
| 19—- 28 | M33X2 | ||||||
| 订货代码12 The order code 12 | 排量 displacement | 进油口 oil inlet | 出油口 Oil outlet | ||||
| 6 | G9/16-18UNF-2B | G9/16-18UNF-2B | |||||
| 8 | G7/8-14UNF-2B | G7/8-14UNF-2B | |||||
| 11—-28 | G11/16-12UN-2B | ||||||
