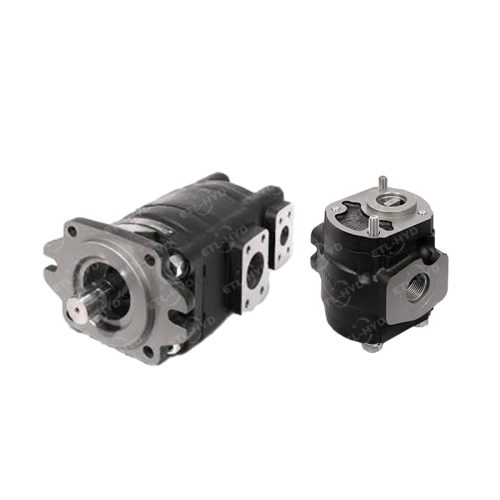

Eternal Hydraulic Casappa Series Gear Pump
Eternal Hydraulic supply a wide range of gear pump for a variety of vehicles and industrial applications, such as hydraulic systems for agricultural machinery ( tractors and so on), construction machinery, municipal cleaning vehicles, etc. Our products can replace brands such as Marzocchi, Casappa, Hyropack, Rexroth… If you are not sure how to choose the model you need, please contact our professional staff.
Polaris [PL]
Gear pumps and motors built in three pieces with an extruded body in high resistance aluminium alloy.
The wide choice of shafts, flanges and ports, in compliance with all international standards (SAE, DIN and EUROPEAN) allow for their use in an infinite variety of applications.
Displacements from 0.07 in³/rev (1,07 cm³/rev) to 5.56 in³/rev (91,10 cm³/rev) available in groups 10, 20 and 30.
Max. peak pressure up to 4350 psi (300 bar).
Max. speed up to 4000 min-1
- High efficiencies
- Integrated outboard bearings for heavy duty applications
- Multiple units available in standard version, common inlet and separated stages
- Electro-hydraulic fan drive system
- Custom design
Built-in valves
- Anti-cavitation valves
- Maximum pressure relief valves
- Priority valves
- “Load sensing” priority valves
- By-pass electric valves
- Proportional relief valves
- Reverse valves
Whisper [WS]
Features
Gear pumps built in three pieces with an extruded body in high resistance aluminium alloy.
WHISPER is a new and original technology protected by international patents and applied to a family of external gear pumps and motors that feature low noise emissions.
The wide choice of shafts, flanges and ports, in compliance with all international standards (SAE, DIN and EUROPEAN) allow for their use in an infinite variety of applications.
Displacements from 0.07 in³/rev (1,12 cm³/rev) to 2.13 in³/rev (34,98 cm³/rev) available in groups 10 and 20.
Max. peak pressure up to 4350 psi (300 bar).
Max. speed up to 4000 min-1
- High efficiencies
- Low noise emission
- Integrated outboard bearings for heavy duty applications
- Multiple units
- Custom design
Built-in valves
- Anti-cavitation valves
- Maximum pressure relief valves
- Priority valves
- “Load sensing” priority valves
- By-pass electric valves
