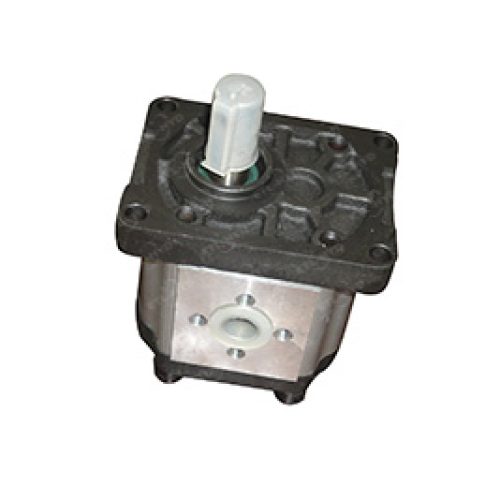

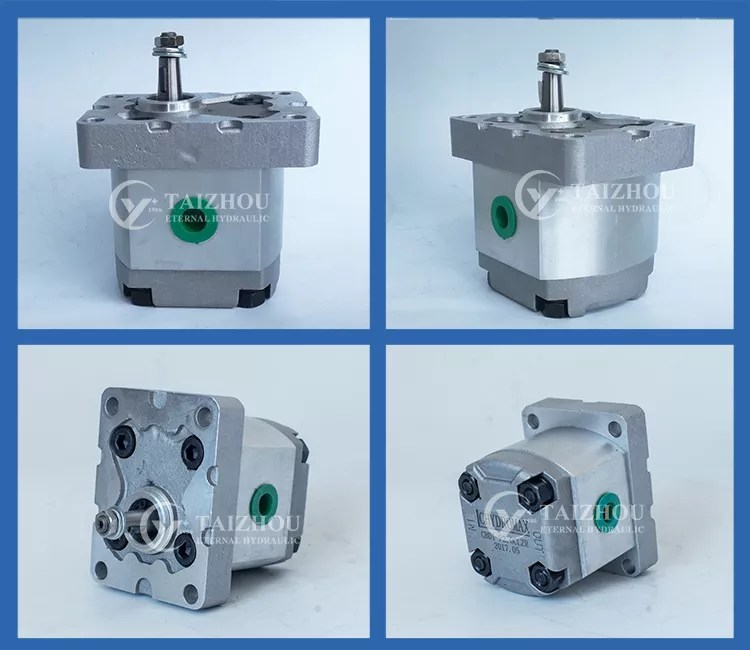

Eternal Hydraulic CBT Hydraulic Gear Pump
Model Code
CBT series pump
| CBT | -F | 3 | 10 | F | P | R |
|---|---|---|---|---|---|---|
| 系列号码 Item Code |
压力等级 Pressure level |
齿轮模数 Gear Modulus |
排量 Displacement |
油口类型 Inlet/Outlet Port Type |
轴伸型式 Shaft Type |
旋向 Rotation |
| CBT | E: 16Mpa F: 20Mpa G: 25Mpa |
M=3 | 6,8,10,12,14, 16,20,25 |
F:法兰连接 F: Flange type L:螺纹连接 L: Screw port |
P:平键 Straight Shaft B:扁平轴 Flat Shaft H:4齿矩形花键 H: 4-Teeth Spline Shaft |
R：顺时针方向 Clockwise L:逆时针方向 Counter clockwise |
Dimension
Technical Data
CBT series pump
| 型号Model | 排量(ml/r) Displacement | 压力 Pressure (Mpa) | 转速 Speed (r/min) | A(mm) | B(mm) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 额定 Rated |
最高 Max |
最低Min | 额定Rated | 最高Max | |||||
| CBT-F306 | 6 | 20 | 25 | 600 | 2000 | 3000 | 47 | 103 | |
| CBT-F308 | 8 | 49 | 106.5 | ||||||
| CBT-F310 | 10 | 50 | 109 | ||||||
| CBT-F312 | 12 | 52 | 113 | ||||||
| CBT-F314 | 14 | 53 | 115 | ||||||
| CBT-F316 | 16 | 54.5 | 118 | ||||||
| CBT-F320 | 20 | 58 | 125 | ||||||
| CBT-F325 | 25 | 62 | 133 | ||||||
→CBT Series Hydraulic Gear Pump PDF
Related Product
→CBF Series Hydraulic Gear Pump
→CBN Series Hydraulic Gear Pump
→CBD1-F2 Series Hydraulic Gear Pump
→CBG Double Hydraulic Gear Pump
→CBQ Series Hydraulic Gear Pump
→CB-B Double Hydraulic Gear Pump
→CBS-D300 Hydraulic Gear Pump
→CBS-D300 Double Hydraulic Gear Pump
→CBW-F200 Hydraulic Gear Pump
→CBW-F300 Double Hydraulic Gear Pump
→CBK-E100 Hydraulic Gear Pump
→CBK-F200 Hydraulic Gear Pump
→CBK-1000 Hydraulic Gear Pump
→CBK-1000 Double Hydraulic Gear Pump
Application
Suitable for a wide range of widely used in agricultural machinery, engineering machinery, construction machinery, textile machinery, mining machinery and lifting and transportation industry. civil construction machinery, industrial vehicles, handling machinery, agriculture and forestry, fishery machinery and industrial automation and other devices.
Features of CBT Hydraulic Gear Pump：
1. High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency.
2. Long service life: high performance, high abrasion resistance, bearings in high voltage, high speed occasions running, not burned.
3. Light weight, compact structure,
4. Body aluminum alloy, high precision molding design, low noise.
5. suitable for a wide range of civil construction machinery, industrial vehicles, handling machinery, agriculture and forestry, fishery machinery and industrial automation and other devices.
