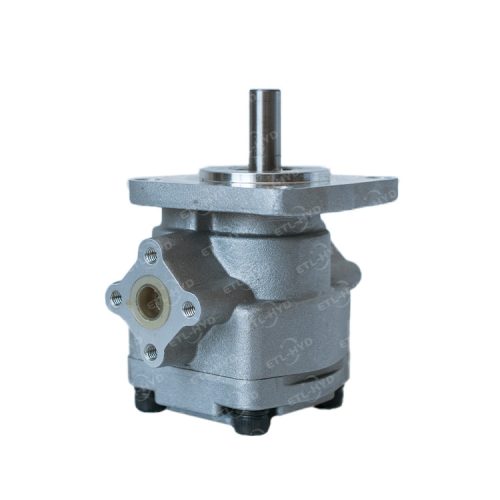

Eternal Hydraulic GPY Series Shimadzu Gear Pump
Shimadzu GPY is a high efficiency, precise and detailed structure design gear pump with high volumetric efficiency and high mechanical efficiency. High reliability, light weight, tight and fine. It’s advanced casting nature, to ensure stable and reliable performance.
Model Code
| GPY 齿轮泵 Series | 8 | R |
|---|---|---|
| GPY 齿轮泵 GPY Gear Pump | 参考性能参数表 Follow Below Table |
R:顺时针 Clockwise L:逆时针 Counter Clockwise |
Dimension
Technical Data
Max Pressure: 250bar(3500psi)
Displacement: 2.98-11.55ml/r
Flange Type: JIS 4-bolt
| 型号Model | 排量ml/r Displacement |
压力 Pressure(Mpa) |
转速 Speed(r/min) | 重量(kg) Weight | 尺寸 Size(cm) | ||||
|---|---|---|---|---|---|---|---|---|---|
| 工作 Working |
最高 Max |
额定 Rated |
最低 Min |
最高 Max |
A | B | |||
| GPY-3 | 2.98 | 20.6 | 22.6 | 1800 | 700 | 3000 | 1.4 | 78 | 39.9 |
| GPY-4 | 4.09 | 500 | |||||||
| GPY-5.8 | 5.77 | ||||||||
| GPY-7 | 7.07 | ||||||||
| GPY-8 | 8.01 | ||||||||
| GPY-9 | 8.94 | 1.8 | 91 | 43.7 | |||||
| GPY-10 | 10.06 | ||||||||
| GPY-11.5 | 11.55 | 2500 | |||||||
→GPY Series Hydraulic Gear Pump PDF
Related Product
→HGP-1A Hydraulic Gear Pump
→HGP-2A Hydraulic Gear Pump
→HGP-3A Hydraulic Gear Pump
→HGP-11A Hydraulic Gear Pump
→HGP-22A Hydraulic Gear Pump
→HGP-33A Hydraulic Gear Pump
→HGP-333A Hydraulic Gear Pump
→P1 Series Hydraulic Gear Pump
→P2 Series Hydraulic Gear Pump
The characteristics of Eternal Hydraulic GPY Shimadzu Gear Pump
- GPY series gear pump with high strength pump body, using high strength cast aluminum alloy pump body, high strength explosion-proof anti-crack.
- There are several high strength fastening bolts for fixing, sealing well, not easy to leak and resistant to high pressure.
- Long service life: high performance, high abrasion resistance, bearings in high voltage, high speed occasions running, not burned.
- Light weight, compact structure.
- High efficiency: precise and detailed structural design, this series of gear pumps with high volume rate and high mechanical efficiency.
- Body aluminum alloy, high precision molding design, low noise.
