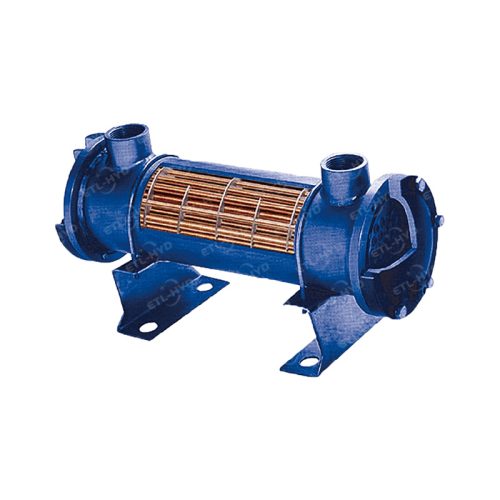

GLC Hydraulic Water Cooler

GLC

ETERNAL HYDRAULIC

GLC1 GLC2 GLC3 GLC4 GLC5 GLC5 GLC6 GLC7 GLC8 GLC9 GLC10 GLC11 GLC12
Contact Inquiry
PDF Download

Eternal Hydraulic Water Cooler

Water cooled hydraulic oil cooler are extremely efficient and perform their job by circulating cold water through the heat exchanger at the same time hydraulic oil is also being circulated, the water cooling system works by carrying away heat from the oil.

Not only are water cooling systems very efficient, they often have low upfront costs and are both quiet and compact. These types of systems are also affected very little by the temperature of the air, having little to no effect on the cooling capacity, perfect if you are looking for a high level of consistency.





Model Code

Spec Model Cooling Area m2 Working Pressure

Mpa

 Working

Temperature C°

 Pressure Drop Oil-Water

Flow Ratio

 Viscosity Heat T raster

Coefficient W/m2·k
Oil Water
GLC1 0.4-1.2 0.63 1.0 <120 <0.1 40.05 1:1 200-300 <350
GLC2 13-3.5
GLC3 4-11
GLC4 13-27
GLC5 30-54
GLC6 55-90
GLL6 3-7 0.63 1.0 1:1.5 <300
GLL7 8-11
GLL8 12-28
GLL9 35-60
GLL1O 80-120
GLL11 140-180
GLL12 200-300





Dimension



Technical Data

Model L C L1 H1 H2 D1 D2 C1 C2 B L2 L3 n-d3 d1 d2 Weight
(kg)
GLC1-0. 4 370 240 67 60 68 78 115 52 102 132 115 145 4-(Φ11) (Dg25) G3/4” (Dg20) 8
GLC1-O. 6 540 405 310 10
GLC1-0. 8 660 532 435 12
GLC1-1 810 665 570 13
GLC1-1.2 940 805 715 15
GLC2-1.3 560 375 98 85 93 121 165 78 145 175 172 225 4-(Φ11) G1〃 (Dg25) G1” (Dg25) 19
GLC2-1. 7 690 500 350 21
GLC2-2. 1 820 635 485 25
GLC2-2. 6 960 775 630 29
GLC2-3 1110 925 780 32
GLC2-3. 5 1270 1085 935 36
GLC3-4 840 570 152 125 158 168 215 110 170 210 245 380 4-(Φ15) G弘〃 (Dg36) G%’ (Dg30) 74
GLC3-5 990 720 530 77
GLC3-6 1140 870 680 85
GLC3-7 1310 1040 850 90
GLC3-8 1470 1200 1010 G2″ (Dg50) G%’ (Dg36) 96
GLC3-9 1630 1360 1170 105
GLC3-10 1800 1530 1340 110
GLC3-11 1980 1710 1520 118
GLC4-I3 1340 985 197 160 208 219 285 140 270 320 318 745 4-(Φ19) G2” (Dg50) G2” (Dg50) 152
GLC4-I5 1500 1145 905 164
GLC4-I7 1660 1305 1065 175
GLC4-I9 1830 1475 1235 188
GLC4-2I 2010 1655 1415 200
GLC4-23 2180 1825 1585 213
GLC4-25 2360 2005 1765 225
GLC4-27 2530 2175 1935 238
GLC5-3O 1932 1570 202 200 234 273 335 180 280 320 327 1320 4-(Φ23) G2%〃 (Dg60) G2″ (Dg50)
GLC5-34 2152 1790 1540
GLC5-37 2322 1960 1710
GLC5-41 2542 2180 1930
GLC5-44 2712 2350 2100
GLC5-48 2872 2510 2260
GLC5-51 3092 2730 2480
GLC5-54 3262 2900 2650
GLC6-55 2272 1860 227 230 284 325 410 200 300 390 362 1590 4-(Φ23) G3” (Dg70) G2%“ (Dg60)
GLC6-60 2452 2040 1170
GLC6-65 2632 2220 1950
GLC6-70 2812 2400 2130
GLC6-75 2992 2580 2310
GLC6-80 3172 2760 2490
GLC6-85 3352 2940 2670
GLC6-90 3532 3120 2850



→OR & GLC & GLP Water Cooler PDF



Application

The water cooler is widely used for hydraulic system of petroleum, metallurgy, mining, chemical industry, electric power, air compressor, die casting machine, machine tool, plastic machine, textile, other light industries, etc.





Features of GLC Hydraulic Water Cooler

1. This product is reseached and developed, according to oversea high-tech,have novel structure, use spiral coils to increase the
heat transfer area, the heat transfer is excellent.
2. It features small size, light duty, easy assembly.
3. No oil leakage.
4.Low water consumption.
