OR Series Hydraulic Water Cooler

or

ETERNAL HYDRAULIC

OR-60 OR-100 OR-150 OR-250 OR-350 OR-600 OR-800 OR-1000 OR-1200
Contact Inquiry
PDF Download

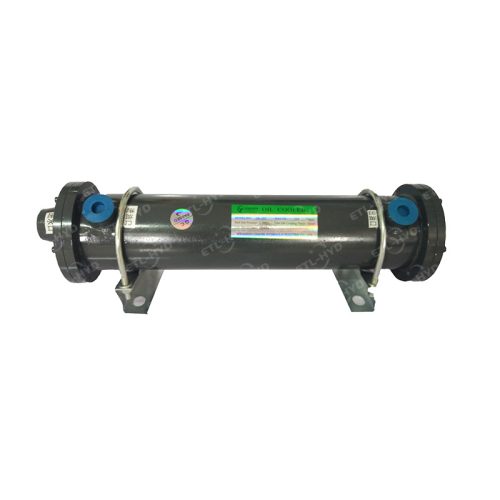

Eternal Hydraulic Water Cooler

Water cooled hydraulic oil cooler are extremely efficient and perform their job by circulating cold water through the heat exchanger at the same time hydraulic oil is also being circulated, the water cooling system works by carrying away heat from the oil.

Not only are water cooling systems very efficient, they often have low upfront costs and are both quiet and compact. These types of systems are also affected very little by the temperature of the air, having little to no effect on the cooling capacity, perfect if you are looking for a high level of consistency.



Model Code

Model A B C D E F G Cooling Aream2 Tank Capacily Weight Pump Flow Water Flow
OR-60 450 305 40 89.1 120 3/4 3/4 0.24 60 8 100 50
OR-100 555 370 55 114.3 140 3/4 3/4 0.35 100 12 200 100
OR-150 575 385 65 139.8 170 1 1/4 1 0.6 150 17 300 150
OR-250 780 585 65 139.8 170 1 1/4 1 1.2 250 22 300 150
OR-350 1180 990 65 139.8 170 1 1/4 1 1.9 350 30 300 150
OR-600 1175 950 85 165.2 196 2 1 1/4 1.9 600 35 400 200
OR-800 1700 1490 85 165.2 196 2 1 1/4 2.8 800 43 400 200
OR-1000 2140 1890 85 165.2 196 2 1 1/4 3.5 1000 51 400 200
OR-1200 2530 2270 85 165.2 196 2 1 1/4 4.2 1200 58 400 200



Dimension of OR Water Cooler



→OR & GLC & GLP Water Cooled PDF



Application

The water cooler is widely used for hydraulic system of petroleum, metallurgy, mining, chemical industry, electric power, air compressor, die casting machine, machine tool, plastic machine, textile, other light industries, etc.





Features of OR Hydraulic Water Cooler:

1. The heat transfer area is wide: the heat transfer tube of the cooler is designed with bare tubes, and the contact area is wide, the heat transfer is indeed good, and the cooling effect is good.
2. Good heat transfer tube: the use of good heat conductivity of99.9% pure copper, for the most suitable cooling tube.
3. No oil leakage: because the board and the body of the integrated design, can avoid water and oil mixing problems, and at the same time before leaving the factory through airtight test is really tight, so it can achieve the purpose of leak proof.
4. Easy assembly: the foot seat can be 360 degrees of freedom rotation and angle of ontology for free to change the direction of the assembly, the foot seat can be welded directly in any position or machine oil tank, convenient and simple.

5.Anti pollution: suitable for the cooling of dirty and high viscosity oil, and also for water to water and water to heat exchange of gas.
