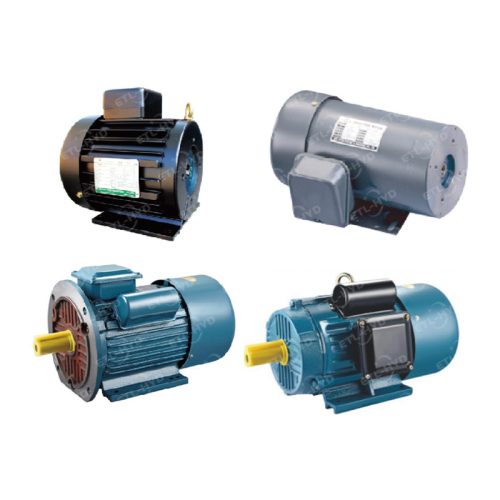

Eternal Hydraulic Electric Motor
Model Code
| M | H | 2P | 4 | -AC380 | -50 | A | /VP1 | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 系列号 Series Number |
马达型式 Motor Type |
马力数(kw) Horse Power | 极数 Pole No |
电压Volte | 频率Hz | 轴伸形式 Shaft Connection |
结合泵型号 Combine Pump Model |
||||||
| M | H:卧式 Hor izonal V:立式 Verticle S:浸油式Oiled |
1HP 2HP 3HP 5HP 7.5HP 10HP |
2:3000rpm 4:1450rpm 6:980rpm 8:760rpm | AC110V AC220V AC240V AC380V AC440V DC12V DC24V DC48V | 50Hz 60Hz |
A:内插式 Shaft Inside | 结合泵型号 Combine Pump Model |
||||||
| B:出轴式 Shaft Outside | 省略Omit | ||||||||||||
| 功率代号(马力) Power Code(HP) |
1/2HP | 1HP | 2HP | 3HP | 5HP | 7.5HP | 10HP | 15HP | 20HP | 25HP | 30HP | 40HP | |
| 功率值Power (kw) | 0.368 | 0.735 | 1.47 | 2.205 | 3.075 | 5.513 | 7.35 | 11.03 | 14.7 | 18.38 | 22.05 | 29.4 | |
Dimension
→Electric Motor PDF
