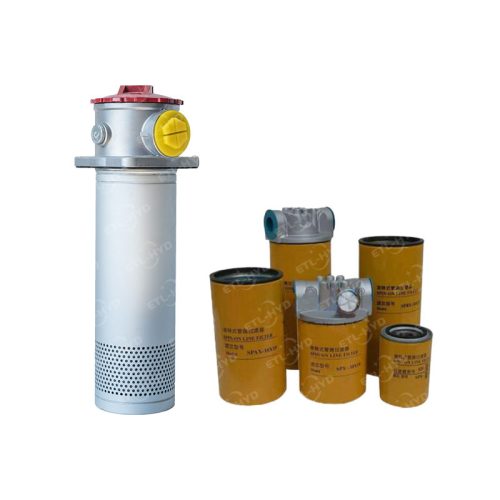

Eternal Hydraulic Oil Filter
Hydraulic filters are essential components in hydraulic systems,designed to remove impurities and contaminants from hydraulic fluid to ensure efficient and stable operation.Hydraulic fluid transmits power in the system,but over time,pollutants such as dust,metal particles,and moisture can accumulate,affecting system performance.Filters work by trapping these contaminants through different filtration methods,protecting hydraulic components from damage.There are various types of hydraulic filters,including suction filters,pressure filters,and return-line filters.Suction filters are installed at the inlet of hydraulic pumps to prevent contaminants from entering the pump.Pressure filters are placed in the main hydraulic circuit and can handle high pressures with fine filtration capabilities.Return-line filters are located in the return line to the reservoir,removing contaminants from the fluid before it re-enters the reservoir.Selecting the right hydraulic filter requires consideration of factors such as the type of hydraulic system,the size and nature of contaminants,fluid flow rate,and pressure.Proper selection and installation of filters can significantly reduce maintenance costs,improve system efficiency,and extend the life of hydraulic components.
Our products including Piston Pump, Vane Pump, Gear Pump, Hydraulic Valve, Hydraulic Motor, Electric Motor, Oil Cooler, Accumulator and various hydraulic accessories.
Ball Valve, Kc Tube Check Valve, Oil Filter, Suction Filter, Filler Breather Filter, Pump Mounting Bracket, Motor Coupling, Fluid Level&Temperature Gauge, Pressure Gauge, Pressure Gauge Switch, Oil Tank, Hydraulic Hose…
Model Code
Hydraulic Oil Filter
| RFA | -100 | x10 | L | C |
|---|---|---|---|---|
| 型号Model | 公称流量(L/min) Nominal flow | 过滤精度μm) Filtration Accuracy |
出油口连接方式 Discharge Port Connection |
发讯器 Indicator |
| RFA微型直回式回油过滤器 RFA Tank mounted min-type return filter |
25,40,63,100, 160,250,400, 630,800,1000 |
1,3,4,10,20,30 | L:出油口螺纹型 Thread Discharge PortF:出油口法兰型 Flange Discharge Port |
省略Omit：无 No Y:带CYB-I型发讯器≤ DC24V Wit C:带CYB-I indicator C:带CY-II indicator |
| 型号 Model |
公称流量 (L/min) Nominal flow |
过滤精度μm)
Filtration Accuracy |
通径 Size |
压力(Mpa) Pressure | 压力损失 Press, loss |
发讯装置 Indicator |
重量 (Kg) Weight |
滤芯型号 Model of element |
||
|---|---|---|---|---|---|---|---|---|---|---|
| 开启 Open |
最大 Max |
V | A | |||||||
| RFA-25x*L- | 25 | 1 3 5 10 20 30 |
15 | 1.6 | ≤0.075 | 0.35 | 12 24 36 220 |
2.5 2 1.5 0.25 |
0.85 | FAX-25x* |
| RFA-40x*L- | 40 | 20 | 0.9 | FAX-40x* | ||||||
| RFA-63x*L- | 63 | 25 | 1.5 | FAX-63x* | ||||||
| RFA-100x*L- | 100 | 32 | 1.7 | FAX-100x* | ||||||
| RFA-160x*L- | 160 | 40 | 2.7 | FAX-160x* | ||||||
| RFA-250x*L- | 250 | 50 | 4.35 | FAX-250x* | ||||||
| RFA-400x*L- | 400 | 65 | 6.15 | FAX-400x* | ||||||
| RFA-630x*L- | 630 | 90 | 8.2 | FAX-630X* | ||||||
| RFA-800x*L- | 800 | 90 | 8.9 | FAX-800X* | ||||||
| RFA-1000x*L- | 1000 | 90 | 9.96 | FAX-1000x* | ||||||
| SP | -06 | x10 | H |
|---|---|---|---|
| 型号 | 口径 Nom.Dia. |
过滤精度 Filtration Accuracy (μm) |
类型Type |
| SP旋转式过滤器 Spin-on Filter
SPH过滤器滤头 Filter Head SPX过滤器滤芯Element |
06:Rc3/4 10:Rc 1¼ |
10μm 25μm | H:回油过滤器 Oil return Filter J：吸油过滤器 Oil Suction Filter |
→Hydraulic Oil Filter PDF
