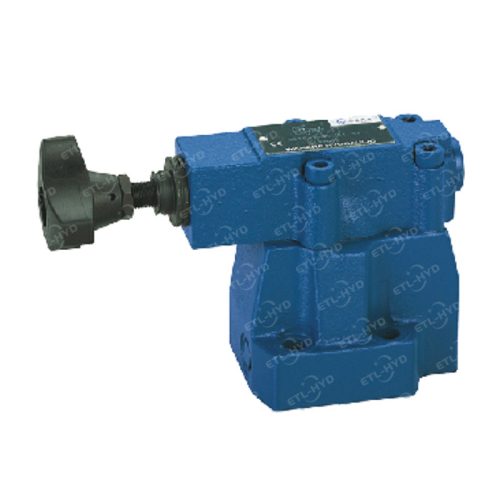

Eternal Hydraulic DR series hydraulic pilot operated pressure reducing Valve
Modle Code
| DR | 10 | 1 | 6X | 10 | Y | M | V |
|---|---|---|---|---|---|---|---|
| Sort | Nominal size | Adjustment type | Series number | Pressure adjustment range | Oil control | With check valve | Seals |
| Pilot operated
pressure reducing valve |
10:NG10 20:NG20 301NG30 |
1: Rotary knob
2:Sleeve with hexagon and protects cap |
6X6X series | 5:5MPa 10:10MPa 20:20MPa 31.5:31.5MPa 35:35MPa |
Y: Internal control external drain XY: External control external drain |
No code: Without check valve M: With check valve |
No code: NBR seals for petroleum oils V: FPM seals for phosphate ester |
Technical Data
| Model | DR-10 | DR-20 | DR-30 |
|---|---|---|---|
| Max.flow rate (l/min) | 150 | 300 | 400 |
| Working pressure (MPa) | 35 | ||
| Input pressure (MPa) | 35 | ||
| Output pressure (MPa) | 1 to 35 | ||
| Back pressure Y port (MPa) | 35(Only used for without check valve) | ||
| Weight(kgs) | 3.4 | 5.3 | 8 |
