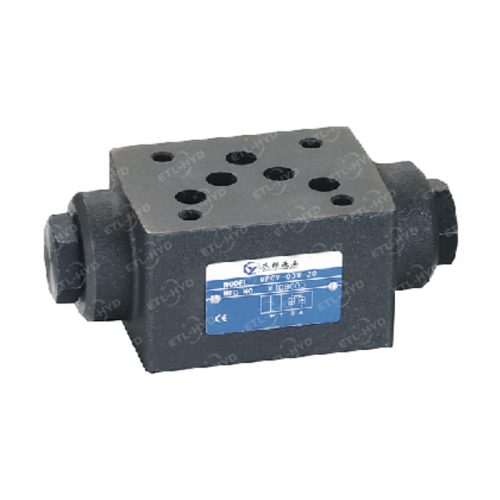

Eternal Hydraulic MPCV Series Modular Operated Check Valve
Modle Code
| MPCV | 02 | A | ’05 | 20 |
|---|---|---|---|---|
| Sort | Nominal size | Pilot oil port | Kracking pressure | Design code |
| Modular pilot operated check valve | 02:NG6 Cetop3
03:NG10Cetop5 04:NG16Cetop7 06:NG22 Cetop8 |
A:A port B:B portW:A&B port |
05:0.35bar
50:3.5bar |
20 |
Technical Data
| Model | MPCV-02 | MPCV-03 | MPCV-04 | MPCV-06 |
|---|---|---|---|---|
| Max.flow rate (l/min) | 35 | 70 | 200 | 450 |
| Working pressure (MPa) | 25 | |||
| Weight(kgs) | 1.1 | 2.6 | 5.5 | 12.5 |
