Eternal Hydraulic ( MTZ / belarus-tractor Supplier )

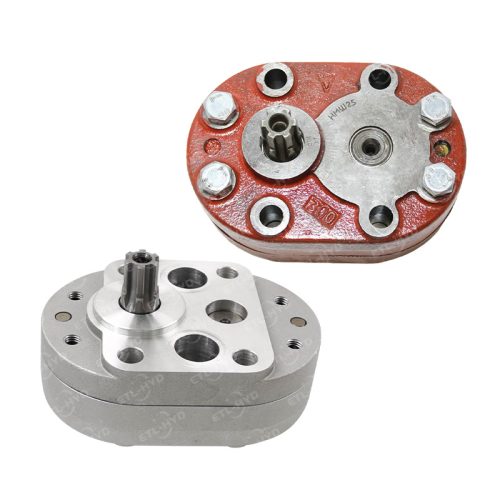

NMSH25/32 Low Pressure Hydraulic Gear Pump Aluminum/Cast Iron Body
Gear pumps NMSH (NMSH25/32) are designed for transmission of agricultural tractors and other mobile machines.
Marking of aluminum alloy: МШ25В, NMSH25ВА, NMSH32В, NMSH32ВА.
Marking of cast iron pumps: NMSH25, NMSH32, NMSH50, NMSH25А, NMSH32А, NMSH50А.
– Displacement 25, 32, 50 cmᶟ
– Rated pressure up to 16 bar
– Maximum pressure up to 25 bar
– Maximum speed up to 2500 min⁻¹
Low pressure gear oil pumps are made with aluminum alloy or cast iron. Specially designed for transmission of agricultural tractors.
Features
- External gear pumps.
- Cast iron or aluminum alloy body.
- Metallofluoroplastic bearings.
Application
- Wheeled tractors МТЗ
- Tractors ЧТЗ Т-130, Т-140, Т-160, Т-170
- PTZ tractors
NMSH25/32 Gear Pump
