A6VM Axial Piston Motor

A6VM

ETERNAL HYDRAULIC

A6VM28 A6VM55 A6VM80 A6VM107 A6VM140 A6VM160 A6VM200 A6VM250 A6VM355 A6VM500 A6VM1000
Contact Inquiry
PDF Download

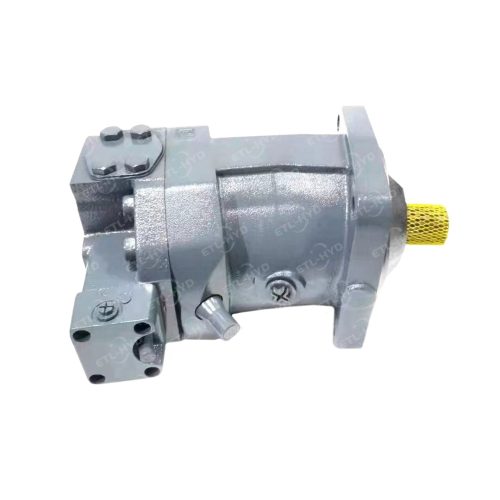

Eternal Hydraulic A6VM Axial Piston Motor

Eternal Hydraulic A6VM Axial Piston Motor is a all-purpose high pressure motor, with series 65 (size 55 – 200) , series 63 (size 28-1000). The metric version, nominal pressure up to 400 bar, maximum pressure up to 450 bar， used for open and closed circuits. Our products have lower noise and longer life, can replace Rexroth type.

Axial Piston Motor





Technical Data

Size NG 28 55 80 107 140 160 200 250 355 500 1000
Displacement geometric”, Vg max cm3 28.1 54.8 80 107 140 160 200 250 355 500 1000
per revolution Vg min cm3 0 0 0 0 0 0 0 0 0 0 0
Vgx cm3 18 35 51 68 88 61 76 188 270 377 762
Speed maximum2

(while adhering to the maximum

permissible input flow) at Vg max

 ^nom rpm 5550 4450 3900 3550 3250 3100 2900 2700 2240 2000 1600
at Vg < Vg x (see diagram below) nmax rpm 8750 7000 6150 5600 5150 4900 4600 3600 2950 2650 1600
at Vgo rpm 10450 8350 7350 6300 5750 5500 5100 3600 2950 2650 1600
Input flow3) at nn0m and Vq Av max L/min 156 244 312 380 455 496 580 675 795 1000 1600
Torque4) at Vq max and Ap = 400 bar T Nm 179 349 509 681 891 1019 1273 — 一 — 一
at Vq max and Ap = 350 bar T Nm 157 305 446 596 778 891 1114 1391 1978 2785 5571
Rotary stiffness Vg max tO Vg/2 Cmin KNm/rad 6 10 16 21 34 35 44 60 75 115 281
Vg/2 to 0 (interpolated) Cmax KNm/rad 18 32 48 65 93 105 130 181 262 391 820
Moment of inertia for rotary group Jgr kgm2 0.0014 0.0042 0.008 0.0127 0.0207 0.0253 0.0353 0.061 0.102 0.178 0.55
Maximum angular acceleration a rad/s2 47000 31500 24000 19000 11000 11000 11000 10000 8300 5500 4000
Case volume V L 0.5 0.75 1.2 1.5 1.8 2.4 2.7 3.0 5.0 7.0 16.0
Mass (approx.) m kg 16 26 34 47 60 64 80 100 170 210 430

→A6VM Series Piston Motor PDF



APPLICATION

Piston pumps are widely used in high-pressure, high-flow, high-power systems and where the flow needs to be regulated, such as mobile and construction equipment, engineering vehicles, heavy-duty planers, metal forming and stamping, machine tools, hydraulic presses, oilfield equipment, mining and metallurgical machinery, marine and other hydraulic systems.



Features

Variable motor with axial tapered piston rotary group of bentaxis design, for hydrostatic drives in open and closed circuits

  •  For use in mobile and stationary applications
  • The wide control range enables the variable motor to satisfy the requirement for high speed and high torque.
  •  The displacement can be infinitely changed from Vg max to Vg min = 0.
  •  The output speed is dependent on the flow of the pump and the displacement of the motor.
  •  The output torque increases with the pressure differential between the high-pressure and low-pressure side and with increasing displacement.
  •  Wide control range with hydrostatic transmissions
  •  Wide selection of control devices
  •  Cost savings through elimination of gear shifts and possibility of using smaller pumps
  •  Compact, robust motor with long service life
  •  High power density
  •  Good starting characteristics
  •  Small swing torque



Related Product

hydraulic variable motor

A6VE is a hydraulic variable plug-in motor with axial tapered piston rotary group of bentaxis design for hydrostatic drives in open and closed circuits. For axial piston units with bent-axis design, the pistons are arranged at an angle to the drive shaft.The pistons rest directly on the drive shaft where they generate torque depending on the pressure and swivel angle. The specific torque and displacement can be changed by adjusting the bent axis.
