A8VO Hydraulic Piston Pump

A8VO

ETERNAL HYDRAULIC

A8VO55,A8VO80,A8VO107, A8VO140,A8VO200

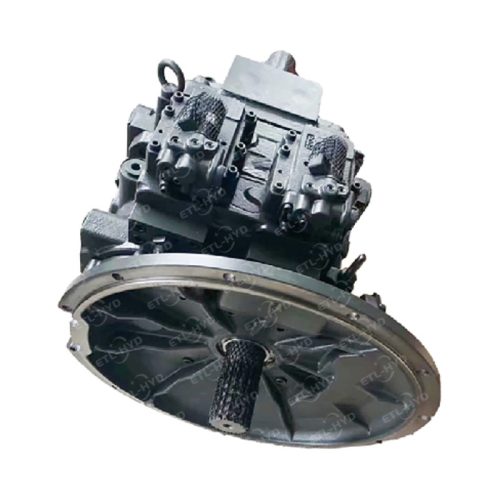

Eternal Hydraulic A8VO Hydraulic Piston Pump

A8VO Variable single/double hydraulic pump with two axial tapered piston rotary groups of bent-axis design for hydrostatic drives in open circuits.

Displacement: 55-200 ml/r

Rated Pressure: 350 bar

Maximum Pressure:400 bar



Size A8VO55 A8VO80 A8VO107 A8VO140 A8VO200
Displacement Vg max cm3 2 x 54.8 2 x 80 2 x 107 2 x 140 2 x 200
Vg min cm3 0 0 0 0 0
Gear ratio i = ninput/nrotary groups 1 1 1 1 1
Input speed at Vg max 1) nmax 1 rpm 2500 2240 2150 2100 1950
at Vg ≤ Vg max2) nmax rpm 3000 2750 2450 2450 2250
Flow at nmax and Vg max qv max L/min 2 x 137 2 x 179 2 x 230 2 x 294 2 x 390
Power at nmax, Vgmax and Dp=350 bar Pmax kW 160 209 268 294 3) 325 3)
Input torque Tmax Nm 611 891 1192 1337 3) 1592 3)
Rotary stiffness (single rotary group)5) cTW Nm/rad 11213 17985 25565 41408 39505
cTW Nm/rad 41442 67666 89381 146677 156876
Moment of inertia for rotary group JTW kgm2 0.0161 0.0209 0.0345 0.0581 0.0849
without power take-off (PTO) JTW kgm2 0.0126 0.0173 0.0288 0.05 0.075
Angular acceleration (single rotary group)5) a rad/s2 25800 21800 17100 7500 11000
Mass approx. m kg 82 90 116 146 180
Variation: with integrated auxiliary pump, F00, F.. 4)
Displacement with integrated auxiliary pump Vg max cm3 8.6 8.6 8.6 (10.7) 10.7 11 (19)4)
Effective displacement Vg max/eff cm3 9.7 9.7 11 (13.7) 12.7 13.6 (23.6)
Gear ratio i = ninput/naux. pump 0.887 0.887 0.78 0.843 0.804
Variation: with power take-offs, K.., F.
Max. torque at PTO Tmax Nm 250 350 380 450 650
Gear ratio i = ninput/nPTO 1 1 1 1 0.804



Features of A8VO Hydraulic Pump

  • Variable double pump is equipped with two axial conical plunger rotating components with inclined axis design for hydrostatic transmission in an open circuit
  • The flow rate is proportional to the input speed and displacement, and it changes steplessly from qv max to qv min(0)
  • The pump is suitable for mounting directly on the flywheel housing of a diesel engine
  • The auxiliary pump and the two oil circuits share one suction port
  • Powerful control program, which can realize different control and adjustment functions
  • Independent power controller
  • Built-in auxiliary pump with pressure relief valve, optional additional pressure relief valve
  • A variety of power output devices can be used to install axial piston and gear pumps
  • Outstanding power/weight ratio
  • Long service life– Long service life



Instructions

  • The A8VO pump is designed for use in open circuits.
  • Project planning, assembly and commissioning of the pump must be carried out by qualified personnel.
  • Working line ports and function ports are only designed to install hydraulic lines.
  • During and shortly after operation, the motor (especially the solenoid) may be at risk of burns. Take appropriate safety precautions, such as wearing protective clothing.
  • The characteristics of the pump may vary, depending on the working condition of the pump (working pressure, oil temperature).
  • Tightening torque:
  • The tightening torques specified in this technical data sheet are all maximum values ​​and must not exceed these values ​​(maximum thread torque).
  • Observe the manufacturer’s instructions for the maximum allowable tightening torque of the installation tool used!
  • For DIN 13 fixing screws, we recommend a separate check of the tightening torque according to the 2003 version VDI 2230.
  • Subject to the data and information provided here.





Application of A8VO Hydraulic Pump

Piston pumps are widely used in high-pressure, high-flow, high-power systems and where the flow needs to be regulated, such as mobile and construction equipment, engineering vehicles, heavy-duty planers, metal forming and stamping, machine tools, hydraulic presses, oilfield equipment, mining and metallurgical machinery, marine and other hydraulic systems.
