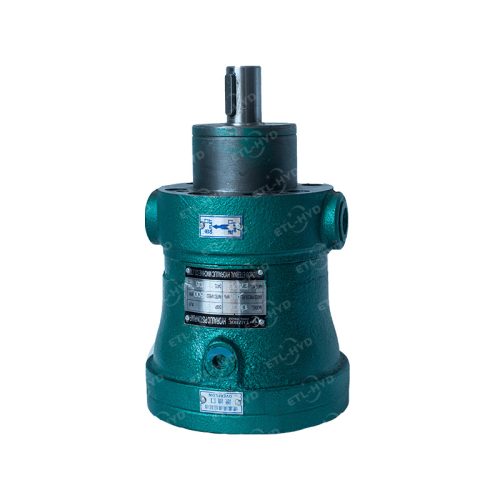

CY14-1B Series Axial Hydraulic Piston Pump
The CY14-1B Hydraulic Pump is of axial piston type with hydrostatic film lubrication of bearing. It makes a feature of compact size , light weight, high efficiency, longer life, simple construction and easy maintenance. This Hydraulic Pump nominal displacement up to (10, 25, 63, 160, 250) ml/r and carries its rating pressure up to 315Bar and a maximum pressure up to 400Bar, and can run with a speed up to (1000, 1500) rpm/min.
MODLE CODE
TECHNICAL PARAMETERS
| 型号 Model |
公称压力 Nominal Pressure(Mpa) |
公称排量 Nominal Displacement (ml/r) |
理论流量 Theoretical Flow L/min | 最大传动功率 Max. Drive Power(KW) |
最大理论扭矩 Maximum Theoretical Torque(N*m) |
|||
|---|---|---|---|---|---|---|---|---|
| 1000r/min | 1500r/min | 1000r/min | ||||||
| 2.5 | MCY14-1B | 31.5 | 2.5 | 2.5 | 3.75 | 1.43 | 17.5 | |
| 10 | MCY14-1B | 31.5 | 10 | 10 | 15 | 5.7 | 54.6 | |
| SCY14-1B | ||||||||
| YCY14-1B | ||||||||
| MYCY14-1B | ||||||||
| BCY14-1B | ||||||||
| PCY14-1B | ||||||||
| 25 | MCY14-1B | 31.5 | 25 | 25 | 37.5 | 14.1 | 134.9 | |
| SCY14-1B | ||||||||
| YCY14-1B | ||||||||
| MYCY14-1B | ||||||||
| BCY14-1B | ||||||||
| PCY14-1B | ||||||||
| 40 | MCY14-1B | 31.5 | 40 | 40 | 60 | 22.6 | 201.5 | |
| SCY14-1B | ||||||||
| YCY14-1B | ||||||||
| MYCY14-1B | ||||||||
| BCY14-1B | ||||||||
| PCY14-1B | ||||||||
| 63 | MCY14-1B | 31.5 | 63 | 63 | 94.5 | 35.6 | 339.9 | |
| SCY14-1B | ||||||||
| YCY14-1B | ||||||||
| MYCY14-1B | ||||||||
| BCY14-1B | ||||||||
| PCY14-1B | ||||||||
| 80 | MCY14-1B | 31.5 | 80 | 80 | 120 | 46.6 | 405.1 | |
| SCY14-1B | ||||||||
| YCY14-1B | ||||||||
| BCY14-1B | ||||||||
| PCY14-1B | ||||||||
| 160 | MCY14-1B | 31.5 | 160 | 160 | 240 | 92.2 | 880.3 | |
| SCY14-1B | ||||||||
| YCY14-1B | ||||||||
| BCY14-1B | ||||||||
| PCY14-1B | ||||||||
| 250 | MCY14-1B | 31.5 | 250 | 250 | 133.2 | 1272.4 | ||
| SCY14-1B | ||||||||
| YCY14-1B | ||||||||
| BCY14-1B | ||||||||
| PCY14-1B | ||||||||
| 400 | MCY14-1B | 31.5 | 400 | 400 | 199.5 | 1905.2 | ||
| SCY14-1B | ||||||||
| YCY14-1B | ||||||||
| BCY14-1B | ||||||||
| PCY14-1B | ||||||||
→CY Series Hydraulic Piston Pump PDF
APPLICATION
The CY14-1B Axial Piston Pumps of this series are designed to supply the hydraulic presses and actuators with fluid pressure up to 315Bar for producing power as required. These pumps also sever as oil motors. Pumps with various displacement control types are available to meet different purpose. Today they have found wide application in hydraulic equipments of hoisting, transportation, marine, mining, metallurgy, construction, molding, forging, machine tool industry and etc.
The characteristics of Eternal Hydraulic piston pump:
· Completely interchangeable with original
· Very competitive price
· Low-noise, high efficiency, high reliability, long life
· Small size, high power density
· Excellent oil absorption properties.
· Drive shaft can withstand the axial and radial loads
· SAE and ISO mounting flange
· For pass-axis structure, and for multi-loop system
