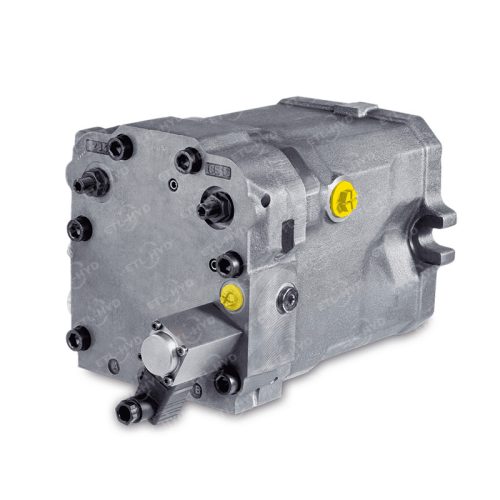

Eternal Hydraulic HMV-02 Variable Displacement Motor
Standard hydraulic motors at low speeds in their starting phase cannot generate the necessary torque. Therefore, the power of the fast spinning hydraulic motors has to be reduced by means of several step gearboxes down to the speed needed on the wheel. Somewhat higher windage losses and poorer mechanical efficiency are benevolently accepted in this context. Quite the opposite holds true for the motors by Linde Hydraulics: The motors of the Series 02 are capable of transmitting the required torque even at low speed and make it possible to start smoothly and sensitively.
| HMV-02 | 55 | 75 | 105 | 135 | 165 | 210 | 280 | 105D | 165D | |
|---|---|---|---|---|---|---|---|---|---|---|
| Max.displacement | cc/rev | 54.7 | 75.9 | 105 | 135.6 | 165.6 | 210 | 281.9 | 210 | 331.2 |
| Max. operating speed at Vmax | rpm | 4300 | 3800 | 3700 | 3200 | 3100 | 2700 | 2400 | 3300 | 2900 |
| Max. speed at Vmax* | rpm | 4400 | 4100 | 3800 | 3500 | 3400 | 3000 | 2700 | 3400 | 3100 |
| Max. operating speed at Vmin | rpm | 4700 | 4400 | 4100 | 3700 | 3500 | 3200 | 2900 | 4100 | 3500 |
| Max. speed at Vmin* | rpm | 5300 | 5000 | 4700 | 4000 | 3900 | 3500 | 3200 | 4400 | 3700 |
| Nominal pressure | bar | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 | 450 |
| Max. pressure** | bar | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 | 500 |
| Output torque (Δp=430bar) | Nm | 374 | 519 | 719 | 928 | 1133 | 1438 | 1929 | 1437 | 2267 |
| Corner power (theor.)*** | kW | 184 | 239 | 309 | 360 | 415 | 482 | 586 | 677 | 878 |
| Weight approx. (without oil) | kg | 28 | 32 | 42 | 56 | 76 | 101 | 146 | 98 | 149 |
* highest transient speed, that can temporarily occur
** highest transient pressure, that can temporarily occur
*** (Vmax x nmax at Vmin x ∆p 430 bar)
Features
- jerk-free low speed
- high starting torque
- large conversion range
- zero angle possible
- dynamic response
- PTO through-drive motor
- compact design
- high power density
- high reliability
- long service life
- axial piston motor in swashplate design for high pressure closed and open circuit systems
- optimized starting and low speed behaviour
- purge valves for circuit and case flushing optional
- stepless or 2-position control
- electric or hydraulic controls
- superposed pressure control optional
- brake pressure shut off optional
- swivelling to 0 cc/rev
- high pressure relief valves available
- through shaft with free shaft end or with coupling flange
- SAE high pressure ports radial or axial
- SAE mounting flange with ANSI or SAE spline shaft
- plug-in version optional
- speed sensor optional
- counter balance valve optional
- double and tandem motor available
APPLICATION
Piston pumps are widely used in high-pressure, high-flow, high-power systems and where the flow needs to be regulated, such as mobile and construction equipment, engineering vehicles, heavy-duty planers, metal forming and stamping, machine tools, hydraulic presses, oilfield equipment, mining and metallurgical machinery, marine and other hydraulic systems.
