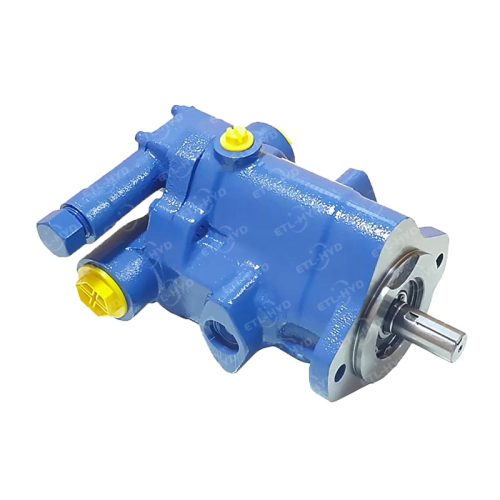

Eternal Hydraulic PVQ Series Piston Pump of Eaton Vickers
Eaton Vickers PVQ hydraulic pump are quiet, in-line, variable displacement axial piston pumps. Sound levels are close to, or below, those of the electric motor driving it.
These pumps have lower operating pressures. The full PVQ pump series covers 7 displacements ranging from 10.5 cc/rev to 45.1 cc/rev: PVQ10 | PVQ13 | PVQ20 | PVQ25 | PVQ32 | PVQ40 | PVQ45
Operating pressures are up to 210 bar (3,045 psi).
Displacement is varied by means of pressure and/or flow compensator controls. A variety of control options offers maximum operating flexibility.

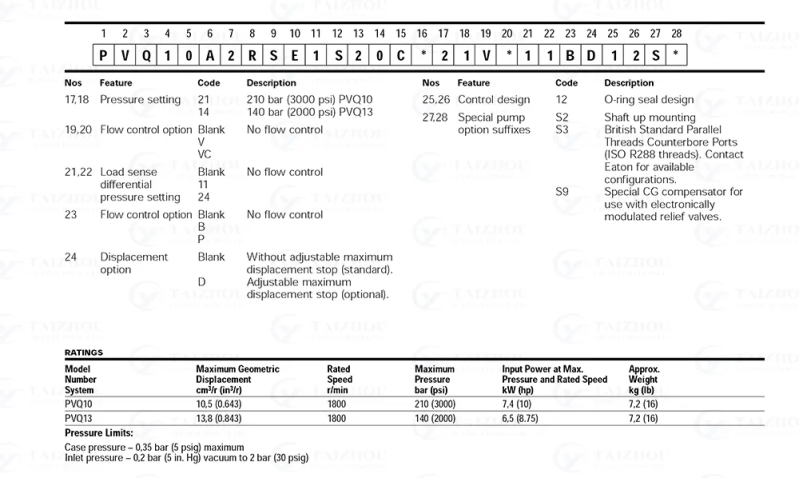

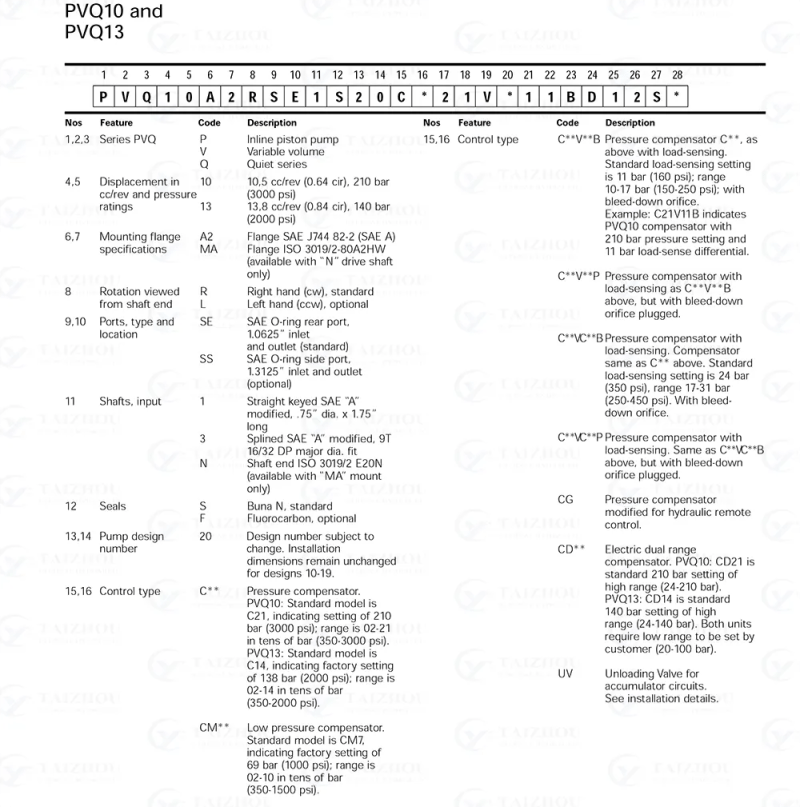

MODLE CODE

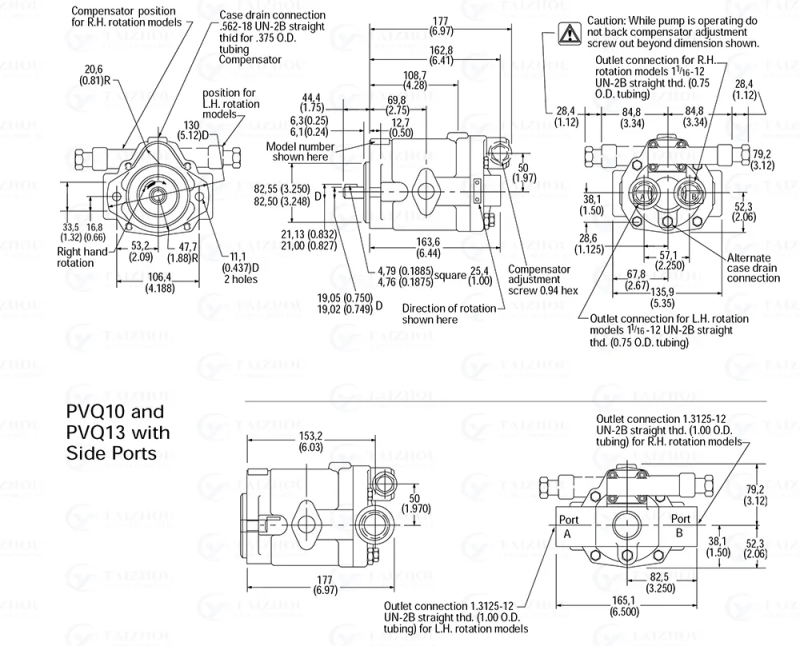

INSTALLATION SIZE
Related Product of Eaton Piston Pump
Features
- Vickers PVQ pumps can operate with many types of hydraulic fluid including: water-content and phosphate ester fluids, and petroleum based and synthetic fluids.
- Many pumps are available in a thru-drive configuration, with coupling to fixed and variable displacement pumps. This makes for a compact and versatile package.
- PVQs operate at quietness levels that meet today’s demanding industrial conditions. The sound level of each unit approaches or is below that of the electric motor driving it. Sound is reduced by a patented timing arrangement that also produces low pressure “pulses” in the outlet flow. This leads to reduced tendencies for noise in systems using PVQs.
- Additionally, PVQs possess the same durability and long life characteristics expected of the best industrial products in today’s marketplace.
Advantages of Eternal Product
- Completely interchangeable with origina
- Very competitive price
- 1 year of warranty
- Short delivery time
