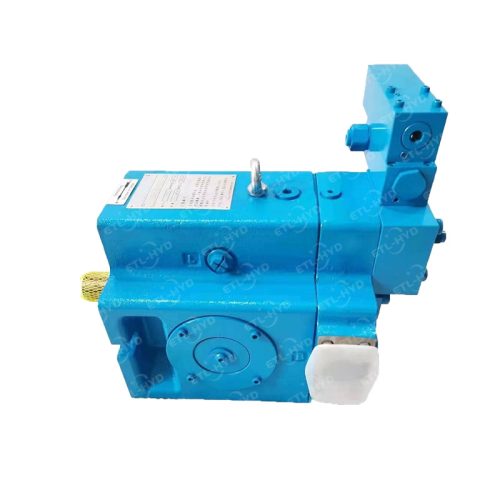

Vickers PVXS Piston Pump

Eternal Hydraulic – Eaton Vickers PVXS Hydrokraft Open Loop Piston Pumps

The wide-range fixed and variable displacements of Eaton Vickers PVX & PFX Series piston pump make them ideal for use with primary metal power units, test stands, mixer drives and more. They come in a robust housing enclosure and are available with displacements from 66 cc to 250 cc (4.03 to 15.26 cu in) at operating pressures up to 350 bar (5,075 psi) for broader application.

We supply Eaton Vickers PVXS and PFXS all sizes, as PVXS066, PVXS090, PVXS130, PVXS180, PVXS250, PFXS066, PFXS090, PFXS130, PFXS180, PFXS250.

Displacement Controls of Vickers PVXS Piston Pump

ES – Electric motor displacement control
HG – Hand-wheel displacement control (Special feature)
FE – Screw adjustment control (Special feature)
DF – Pressure compensator controlled
DQ – Mooring control
LR – Power control with pressure limiter
SP, SM – Displacement proportional to electric signal
DP – Displacement proportional to pressure signal

Features

Eaton Vickers PVE series (‘E’ series) piston pumps are inline, variable displacement pumps. These pumps have a die-cast aluminum housing to reduce weight. They are ideal for use in unsupported PTO drive applications. Options for this particular pump include: mobile pressure compensation, pressure and flow compensation, and remote pressure control.

• Axial piston pumps with swashplate design for reliable operation and long life.
• Pressure up to 420 bar. Rated speed up to 1800 min-1. Higher speeds possible.
• Oversize shafts and bearings.
• Rotating and pressure loaded parts are pressure balanced.
• Integrated pilot pump, filter and pressure relief valves available.
• “Building block” design gives these pumps a wide range of application.
• Fast response times
