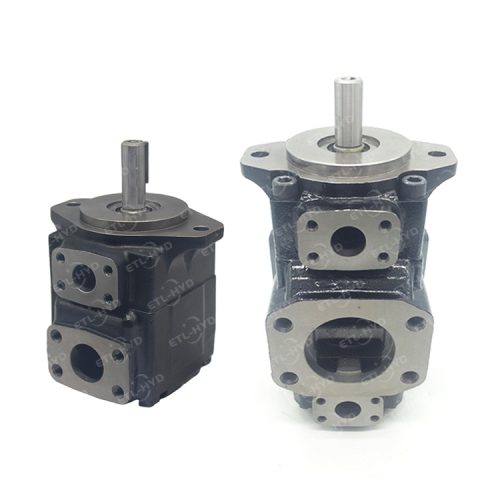

Eternal Hydraulic T6 & T7 Series Denison Vane Pump
Replacment of Denison T6, T7 series single pump,double pump,triple pump, cartridge. We supply most full range products of DENISON in China.
| Series | Model |
| T6 Single Pump | T6C, T6D, T6E |
| T6 Double Pump | T6CC, T6DC, T6EC, T6ED |
| T6 Treble Pump | T6DCC, T6DDCS, T6EDC, T6EDCS |
T6 Features:
1. With dowel pin vane structure, it can work in high pressure, low noise and long lifetime.
2. This vane pumpm can fit side viscosity hydraulic medium, and be started at low temperature and work at high temperature.
3. As the vane pump adopts bilabial structure vane, it has high oil polution resistance and wide speed scope
Model Code
T6 seires single pump
| T6C | -17 | -1 | R | 0 | -A | 1 |
| Code of series | Displacement code | Shaft type | Direction of rotation | Outlet port position | Design No. | Sealing level |
| T6C | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | See of Shaft | (Viewed from the shaft end of pump) | A | 1-S1, NBR Nitrile rubber5-S5, Fluoro rubber |
|
| R-Clockwise rotation L-Counterclockwise rotation |
00-Opposite inlet port 01-Inline with inlet 02-90°CCW from inlet 03-90° CW from inlet |
|||||
| T6D | 14, 17, 20, 24, 28, 31,35,38, 42,45, 50, 61 | |||||
| T6E | 42, 45, 50, 52, 57, 62, 66, 72, 85 | |||||
T6 series double pump
| T6CC | -25 | -17 | -1 | R | 2 | -C | 1 | 10 |
| Code of series | Displacement of front pump | Displacement of rear pump | Shaft type | Rotation | Port positions |
Design number |
Sealing level | Port dimensions |
| T6CC | 03, 05, 06, 08,10, 12, 14, 17, 20,22,25, 28,31 | 03,05,06,08,10,12,14,17,20,22,25,28,31 | See of shaft | (viewed from shaft end of pump) R-Clockwise rotation L-Counter clockwise rotation |
See pictures below | C | 1-S1, NBR Nitrile rubber
5-S5,Fluoro rubber |
00,01,10,11 See installation dimension |
| T6DC | 14, 17, 20, 24, 28,31,35, 38, 42, 45, 50, 61 | 03,05,06,08,10,12,14,17,20,22,25,28,31 | No options | |||||
| T6EC | 42, 45, 50, 52,57, 62, 66, 72, 85 | 03,05,06,08,10,12,14,17,20,22,25,28,31 | ||||||
| T6ED | 42, 45, 50, 52,57, 62, 66, 72, 85 | 14,17,20,24,28,31,35,38,42,45,50,61 |
T6 series triple pump
| T6DCC | -42 | -17 | -10 | -1 | -R | 2 | -A | 1 | 1 |
| Code of series | Displacement of front pump | Displacement of middle pump | Displacement of rear pump | Shaft type | Rotation | Port positions |
Design NO. |
Sealing level | Port dimensions |
| T6CCC | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03,05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | 03, 05, 06, 08, 20, 22, 25, 28, 10, 12, 14, 17, 31 | See of shaft | (Viewed from shaft end of pump)
R-Clockwise Rotation |
See pictures below |
A | 1-SI NBR Nitrile rubber5-S5 Fluoro rubber |
00,01 See installation dimensions |
| T6DCCS | 14, 17, 20, 24, 28, 31,35, 38, 42, 45, 50,61, | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 | ||||||
| T6EDC T6EDCS |
42, 45, 50, 52, 57, 62, 66, 72, 85 | 14, 17, 20, 24, 28, 31, 35, 38, 42, 45, 50, 61 | 03, 05, 06, 08, 10, 12, 14, 17, 20, 22, 25, 28, 31 |
Dimension
Application
Suitable for a variety of high pressure hydraulic system and harsh environments. Widely used for plastic machinery, casting machinery, metal machinery, pressing machinery, refining machinery, construction machinery, marine-Machinery…
